Deskripsi
Features:
* Ruggedly built with reliable design to last
* Cost effective to clients
* Easy operation to meet user habits
Technical Specifications
Optional configuration:
Printer，IC card， ID card， communication for FMS, break away, emergency stop, color screen, ect.
Categories: Standard Series, Fuel Dispenser
Technical specifications:
Accuracy for the unit ±0.25%
Flow rate 5~50L/min
Ambient temperature -25℃~ +55℃; -45℃ ~ +50℃
Relative humidity 20% – 95%
Unit noise rate < 70dB (A);
Inlet vacuum rate for suction pump ≧ 54kPa
Communication With RS 485 port, or current loop Power supply
AC 220V( -15%~+10%), (50/60±1)Hz ;
AC 380V( -15%~+10%)； (50/60±1)Hz
Related Products
Digit of sale 7digits(decimal points can be adjusted )
Digit of volume 6digits (decimal points can be adjusted )
Digit of unit price 5digits (decimal points can be adjusted )
Totalizer of sale 0~42949672.95
Totalizer of volume 0~42949672.95

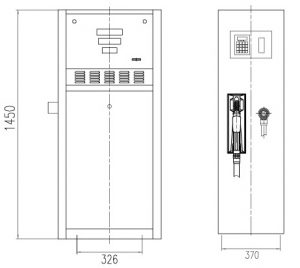

Model Range
SK10QF111B
Model Product Nozzle Display Package(mm)
Gross
weight
SK10ZF111B 1 1 2 1/side 768*546*1570 130
SK10QF111B 1 1 2 1/side 768*546*1570 104
Z: Vane pump Q: Submersible pump
